Servo Motor Demo

This project puts a servo motor through its paces, using a library unit I've written. The unit takes care of assigning the proper duty cycles and frequency to the associated degree positions of the shaft.

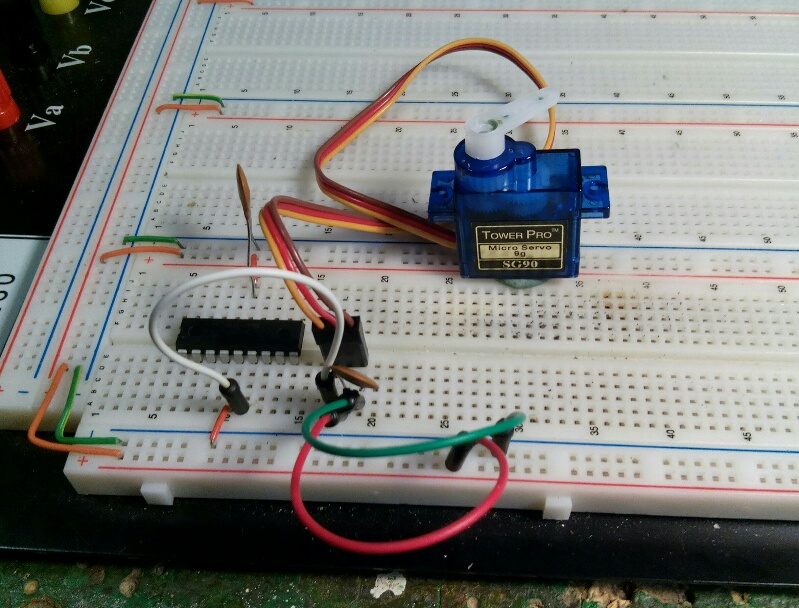

I'm using a Tower Pro SG-90 servo motor here. It's available for less than four bucks from Amazon, which is where I bought mine. There are only three connections: ground, +5V and a control line.

If you're not familiar with these devices, here's the dope. The microcontroller should spit out a pulse wave and vary the duty cycle. For this particular motor, the frequency of the signal is 50 Hz. By experimentation and observation, I noted that a pulse width of 825 microseconds brings the shaft to its 0-degree position, while a pulse width of 2550 microseconds spin it to the 180-degree position.

The library takes care of setting up the interrupts and timer to create the desired pulses. And it can accommodate a variety of motors through compilation constants. For details, read over the code which is richly commented throughout.

Click to get the source code.
Click to get the schematic PDF.
